The architecture of charging systems includes several key components, each playing different roles to ensure efficient and safe charging for electric vehicles (EVs).
 |
These components include:
- OBC (On-Board Charger): An onboard charger is a device installed in an electric vehicle that is responsible for converting the alternating current (AC) received from an external power source (such as a household power supply or public charging station) into direct current (DC) and supplying it to the battery pack in a form suitable for charging. The OBC also manages the voltage and current during the charging process to protect the battery and optimize charging efficiency.
- BMS (Battery Management System): A battery management system is a combination of software and hardware solutions used to monitor the state of an electric vehicle's battery pack, including the battery's charge state, temperature, voltage, and current. The primary purpose of the BMS is to protect the battery pack, extend its life, and ensure safe usage.
- EVSE (Electric Vehicle Supply Equipment): Electric vehicle supply equipment, commonly referred to as a charging station or charging post. EVSE provides an interface between the power grid and the electric vehicle and may contain hardware and software used to control and protect the charging process. Depending on the design, EVSE can offer AC or DC charging.
- PLC (Power Line Communication): Power line communication is a technology for transmitting data over power lines. In electric vehicle charging systems, PLC can be used to transmit data between the vehicle and the charging equipment, such as charging status and control commands. PLC technology allows for the transmission of power and data through the same cable, simplifying the installation and use of charging infrastructure.
These components work together to form a complete electric vehicle charging system, ensuring not only the efficiency and safety of the charging process but also providing a convenient charging experience for vehicle owners.
In response to the demand for fast charging, the traditional silicon-based IGBTs (Insulated Gate Bipolar Transistors) are being replaced by materials with superior performance, such as Silicon Carbide (SiC) and Gallium Nitride (GaN). These advanced semiconductor materials offer several benefits over their silicon counterparts, particularly in the context of electric vehicle (EV) charging systems where efficiency, speed, and reliability are paramount.
SiC and GaN semiconductors are capable of operating at higher temperatures, voltages, and frequencies than silicon-based IGBTs. This allows for faster charging times by enabling higher power throughput while reducing energy loss during the conversion process. Moreover, SiC and GaN devices exhibit lower on-resistance and faster switching capabilities, which significantly improve the efficiency of the charging process. These features not only enhance the performance of fast charging stations but also contribute to the miniaturization of power electronics by allowing components to be smaller without compromising on power delivery.
The adoption of SiC and GaN in fast charging infrastructure is pivotal in meeting the growing demands of electric vehicles for quicker charging times and longer driving ranges. As the EV market continues to expand, the shift towards these advanced semiconductor materials signifies a critical step in the evolution of charging technologies, ensuring that charging systems can keep pace with the performance expectations of modern electric vehicles.
 |

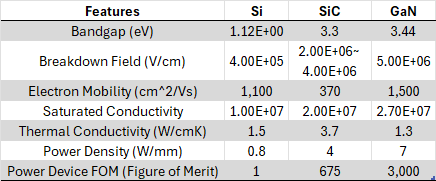

| Comparison Si, SiC and GaN |
 |
| OBC Features |
